Product display
The gear has the advantages of high transmission efficiency, compact structure and long service life. Gears can be widely used in mechanical equipment and industrial fields, with high application value and development prospects.
| Series | Item No. | Name | Modulus | Teeth | Pressure Angle | Helix Angle | Material | Process | N.W.(kg) |

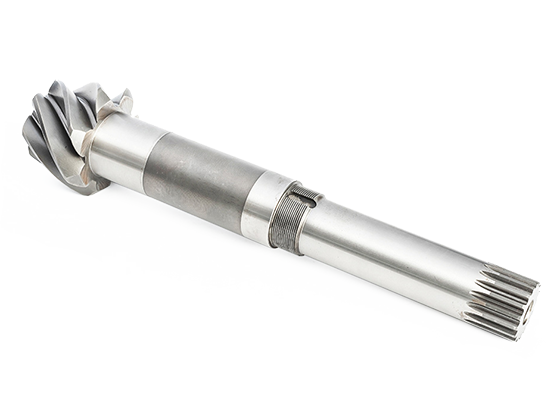

| Spiral Gear Series | WH9YFD190220300214LW | Small Bevel Gear | 7 | 10.18 | 20 | 35/right | 20CrMnTi | Sawing Machine,Gear-shaping,Heat Treatment | 8.1 |

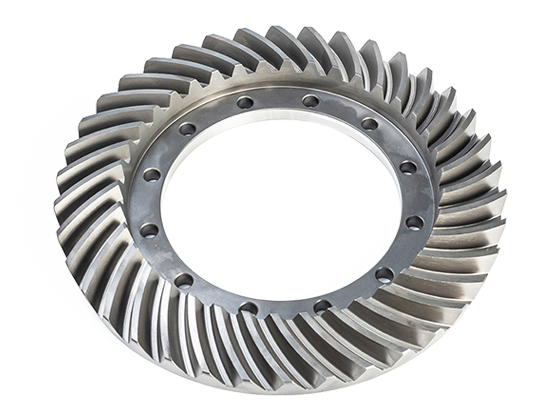

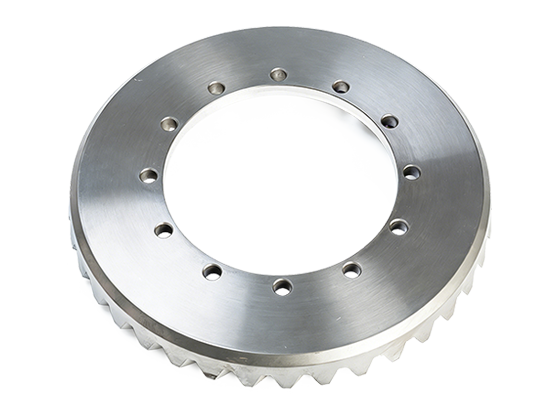

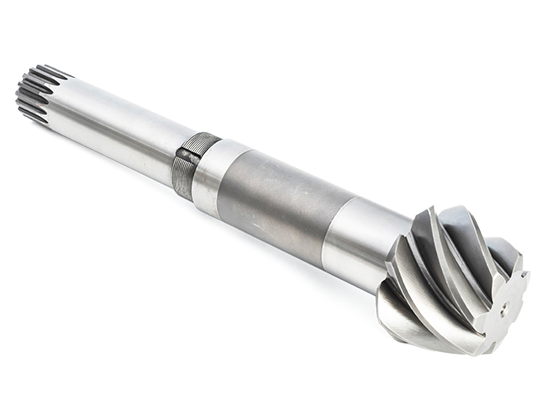

| WH9YFD190220300212 | Large Bevel Gear | 38 | 10.18 | 20 | 35/left | 20CrMnTi | Rough Forging,Gear-shaping,Heat Treatment | 21 |
| Series | Spiral Gear Series | |
| Item No. | WH9YFD190220300214LW | WH9YFD190220300212 |
| Name | Small Bevel Gear | Large Bevel Gear |
| Modulus | 7 | 38 |
| Teeth | 10.18 | 10.18 |
| Pressure Angle | 20 | 20 |
| Helix Angle | 35/right | 35/left |
| Material | 20CrMnTi | 20CrMnTi |
| Process | Sawing Machine,Gear-shaping,Heat Treatment | Rough Forging,Gear-shaping,Heat Treatment |
| N.W.(kg) | 8.1 | 21 |
- Corrosion resistance
- Low cost
- Noise reduction
- High quality material
- shock absorption
- high load bearing capacity
| Series | Y311604 | |
| Item No. | Y3116005 | Y3116004 |

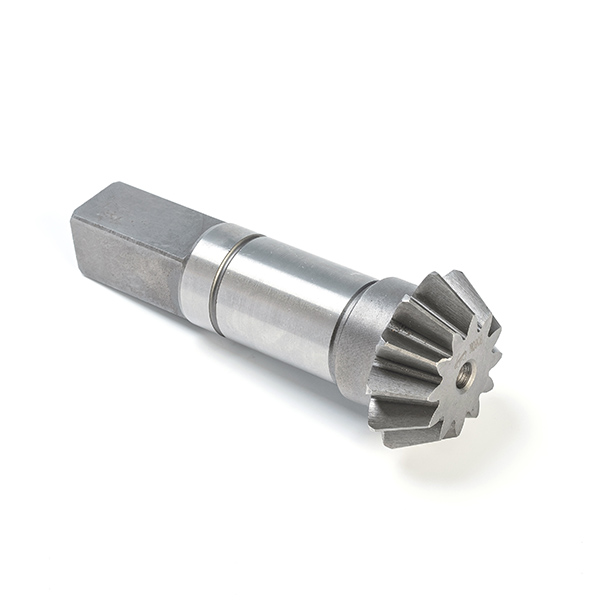

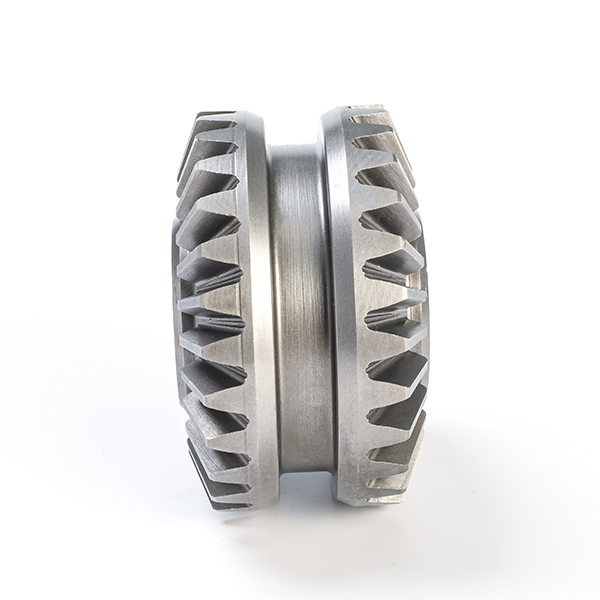

| Name | Double-sided gear | Gear shaft |
| Modulus | 4 | 4 |
| Teeth | 27 | 12 |
| Pressure Angle | 20 | 20 |
| Helix Angle | 0 | 0 |
| Material | 20CrMnTi | 20CrMnTi |
| Process | Gear-shaping | Gear-shaping |
| N.W.(kg) | 3.5 | 1.08 |

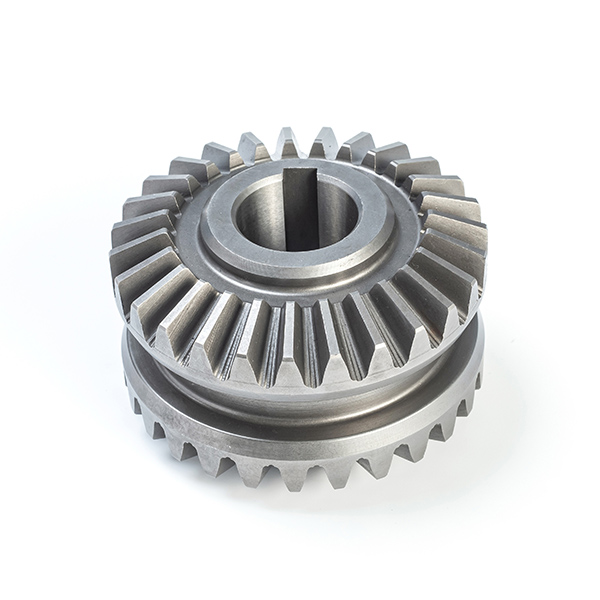

Y3116005

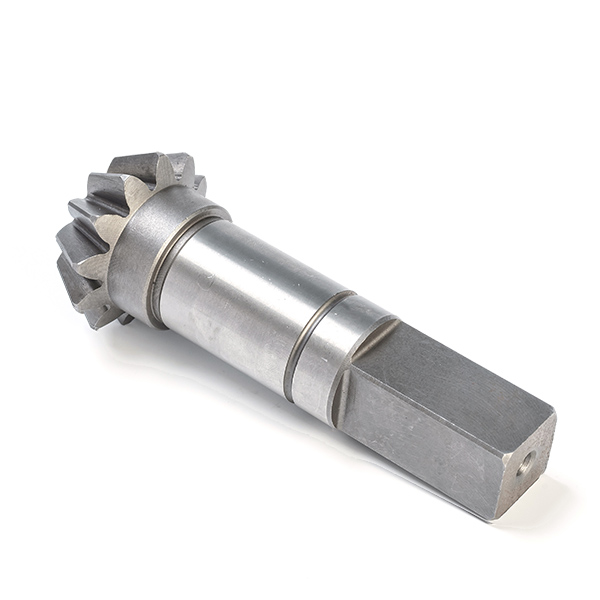

Y3116004
Minor customization
- 01
Dabing offers a wide range of custom gear options.
- 02
Choose suitable materials, such as Nylon, Copper, 304SS,20MnCr5, 20CrMnTi, 20CrMo, 40Cr, SCM440, etc.
- 03
Use personalized packaging methods.
- 04
Print your own logo.
Customers provide design requirements, drawings, or samples.Dabing draws and optimizes drawings based on customer's 2D drawings or samples, and sends them to customers for confirmation.
RELATED PRODUCTS
Por que nos escolher?
25+
Year’s Experience
75+
Employees
30+
CNC Processing Equipment
13000㎡
Factory Area
since 1999

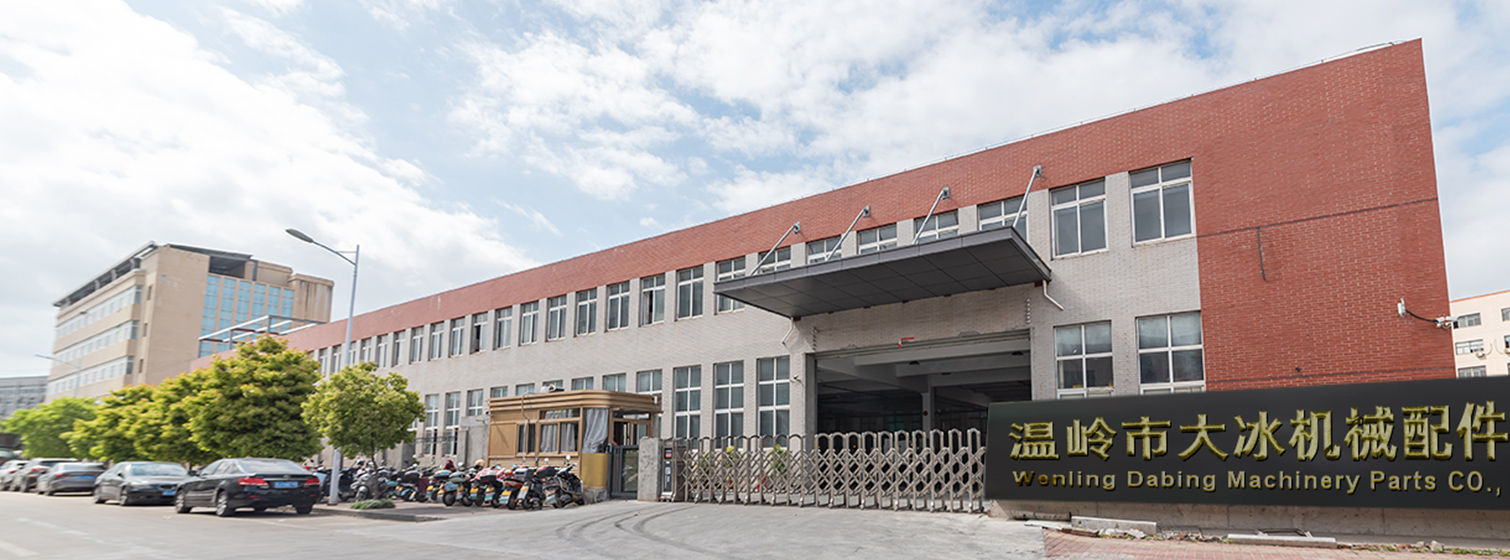

Wenling Dabing Machinery Parts CO., LTD covers an area of 13000 square meters and has more than 75 employees. Our company has continuously introduced advanced technology and production equipment at home and abroad. Currently, we have over 30 CNC processing equipment, 630T press, CMM, etc. With the entire production line equipment from material forging to inspection and packaging, it can provide beautiful product prices and a wide range of products.

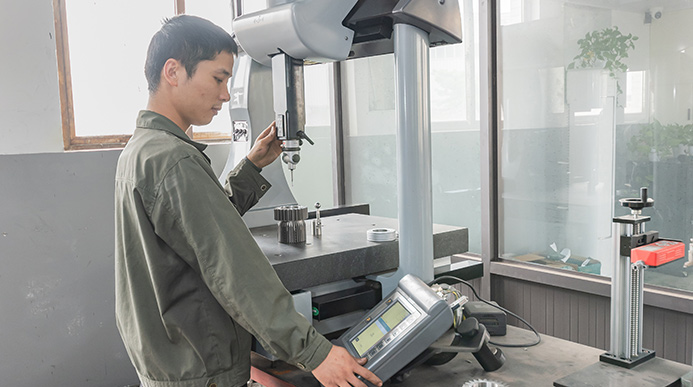

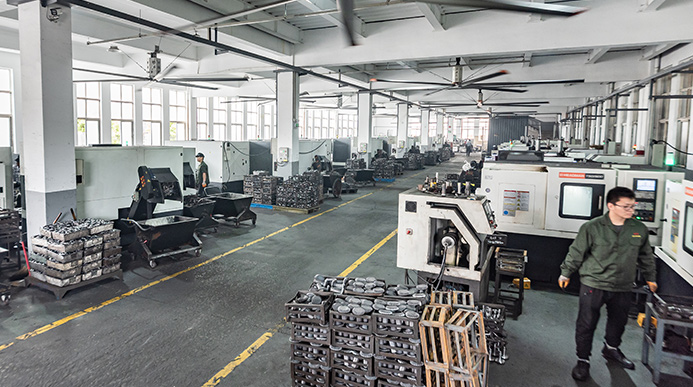

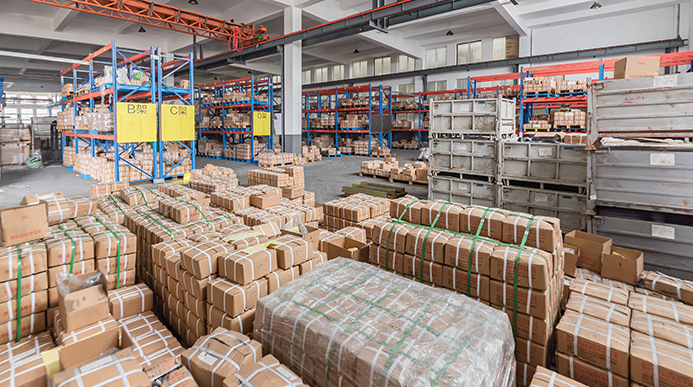

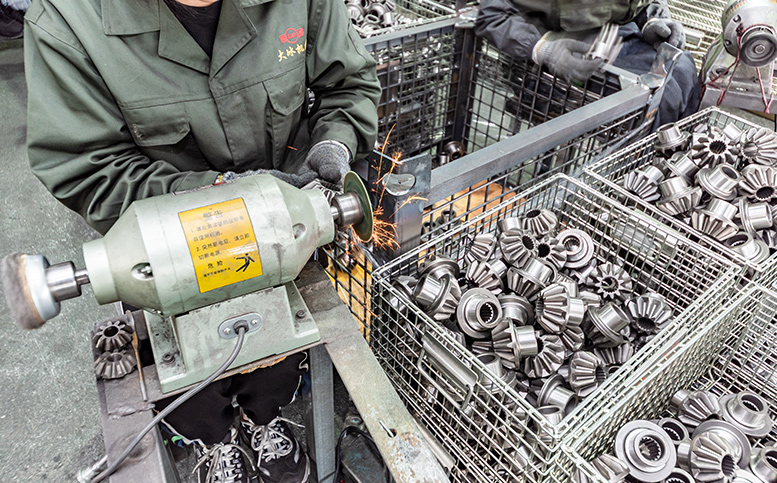

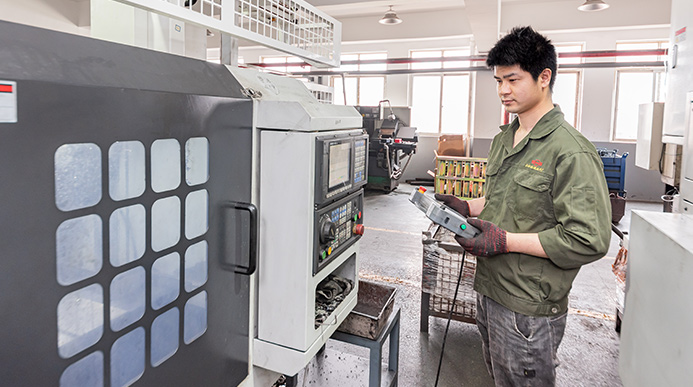

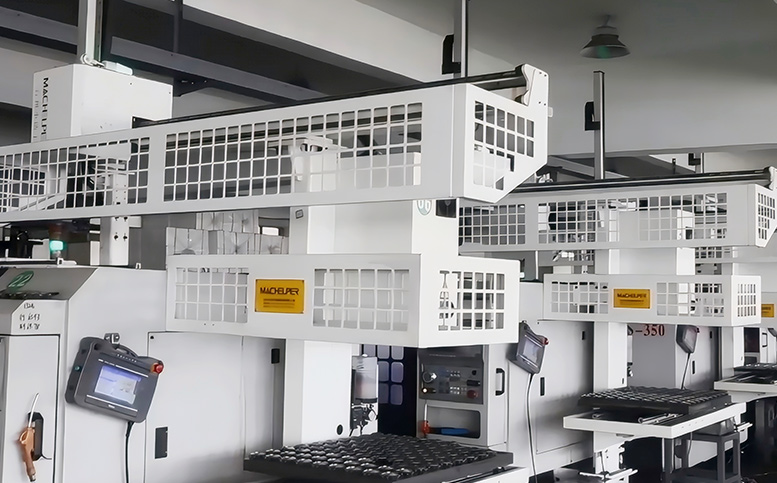

Our Workshop
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In addition, we have obtained IATF:16949certificates.
Our company has over 25 years of experience specializing in the production of various special mechanical transmission bevel gears and gear shafts. We have entire production line equipment which makes better prices and various custom design to be possible.
